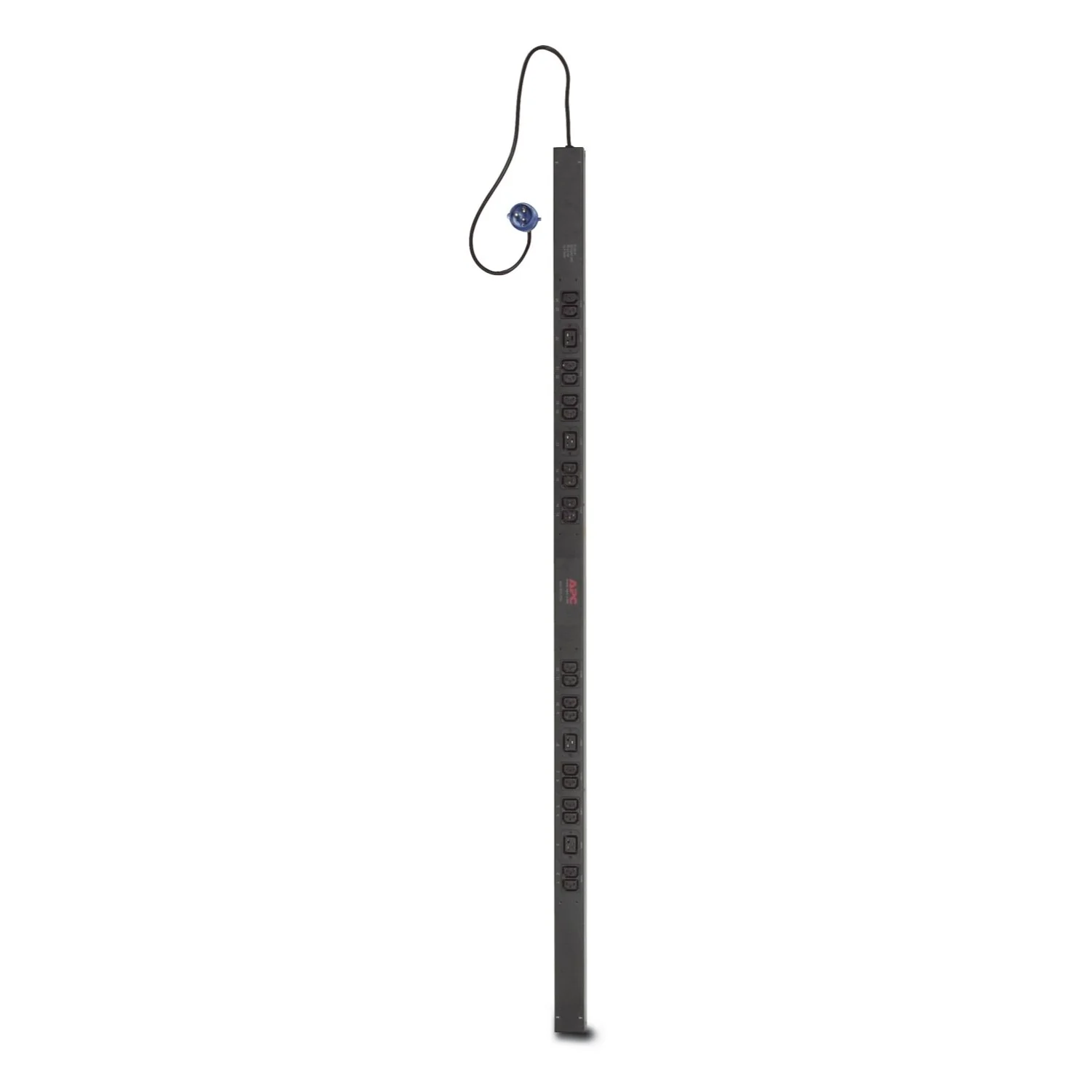

APC Basic Rack PDU, 0U, 230V/16A Input, 4x IEC C19 & 20x IEC C13 Outlets
$779.00
On backorder - Contact us for lead times
Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19; IEC309
Colour Black
PDU type Basic
Cord length 0.91 m
Number of cables 1
Provided equipment- Installation guide, Toolless mounting kit
Input Voltage 200 V, 208 V, 230 V
Output Voltage 230 V
Mounting location Side
Mounting preference No preference
Input Plug Type IEC 60309 16 A 2P + E
Rack units 0U
Mounting position Vertical
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Total number of outlets 20 IEC 60320 C13, 4 IEC 60320 C19
Product certifications CE, GOST, IRAM, VDE
Ambient air temperature for operation 0…45 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP9569, EPDU1016B, EPDU1016M, EPDU1016S
Compatible Mounting- AR7711
