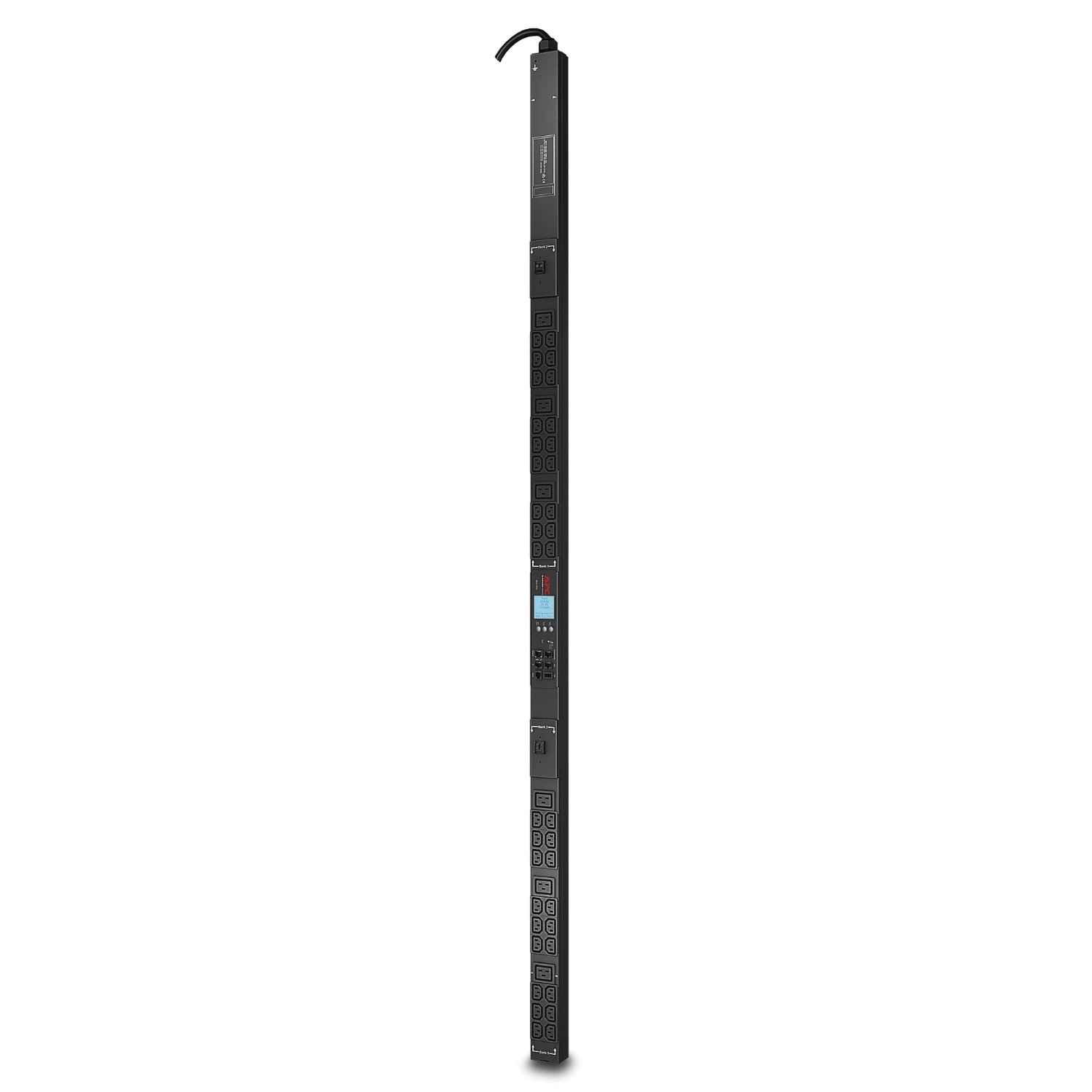

APC Netshelter Metered Rack PDU, 0U, 230V/32A Input, 6x IEC C19 & 36x IEC C13 Outlets
$1,475.00
APC NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Colour Black
PDU type Metered
Cord length 3.00 m
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide
Input Voltage 200 V 208 V 230 V
Output Voltage 230 V
Rack units 0U
USB compatible No
Mounting position Vertical
Permissible voltage 220…240 V
Max line current 32 A
Input current limits 32 A
Load capacity 7400 VA
Network frequency 50/60 Hz
Total number of outlets 36 IEC 60320 C13, 6 IEC 60320 C19
Product certifications- VDE Standards IEC 60950
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Sensors- AP9335T, AP9335TH
Compatible Mounting- AR7711
