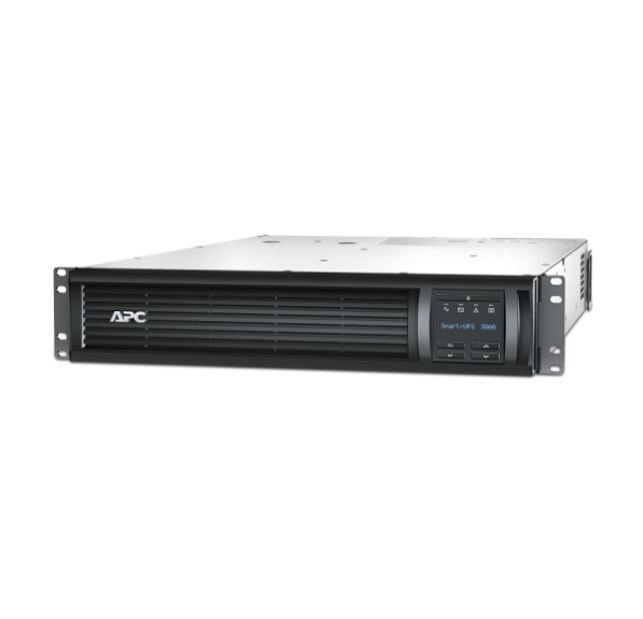

APC Smart-UPS 3000VA/2700W Line Interactive UPS, 2U RM, 230V/16A Input, 1x IEC C19 & 8x IEC C13 Outlets, Lead Acid Battery, SmartConnect Port & Slot
$4,565.00
Output
Output power capacity
2.7kWatts / 3.0kVA
Max Configurable Power (Watts)
2.7kWatts / 3.0kVA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(3) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length
1,83meters
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
RBC43
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
320Joules
Physical
Maximum Height
86MM, 8.6CM
Maximum Width
480MM, 48.0CM
Maximum Depth
683MM, 68.3CM
Rack Height
2U
Net Weight
44.28KG
Shipping weight
51.7KG
Shipping Height
254MM, 25.4CM
Shipping Width
600MM, 60.0CM
Shipping Depth
980MM, 98.0CM
Units per Pallet
8.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
