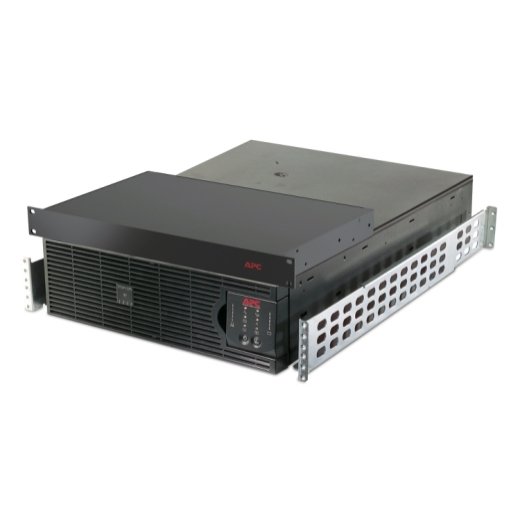

APC Smart-UPS RT 2200VA 230V - Marine

APC Smart-UPS RT 2200VA 230V - Marine
Ruggedized power protection for shipboard and other transportation applications.
Main
Run time for load1540W
21min 17s
Main Input Voltage230 V
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
1540 W
Rated power in VA
2200 VA
Input Connection Type
BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
Output connection type
8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
Number of rack unit
3U
Cable length
2.50 m
Number of cables
1
Battery type
Lead-acid battery
Number of battery filled slots
2
Battery recharge time
2.5 h
Number of battery replacement quantity
1
Battery charger power
382 W rated
Battery life
3…5 year(s)
Replacement battery
APCRBC140
Output
Maximum configurable power in VA
2200 VA
Maximum configurable power in W
1540 W
Output frequency
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised
50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Wave type
Sine wave
Harmonic distortion
Less than 3 %
Crest factor
3 : 1
Conformance
Product certifications
CE
DNV
KCC
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation
0…55 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0.00…15240.00 m
Acoustic level
55 dBA
Heat dissipation
609 Btu/h
IP degree of protection
IP20
Surge Protection and Filtering
Surge energy rate
555 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
