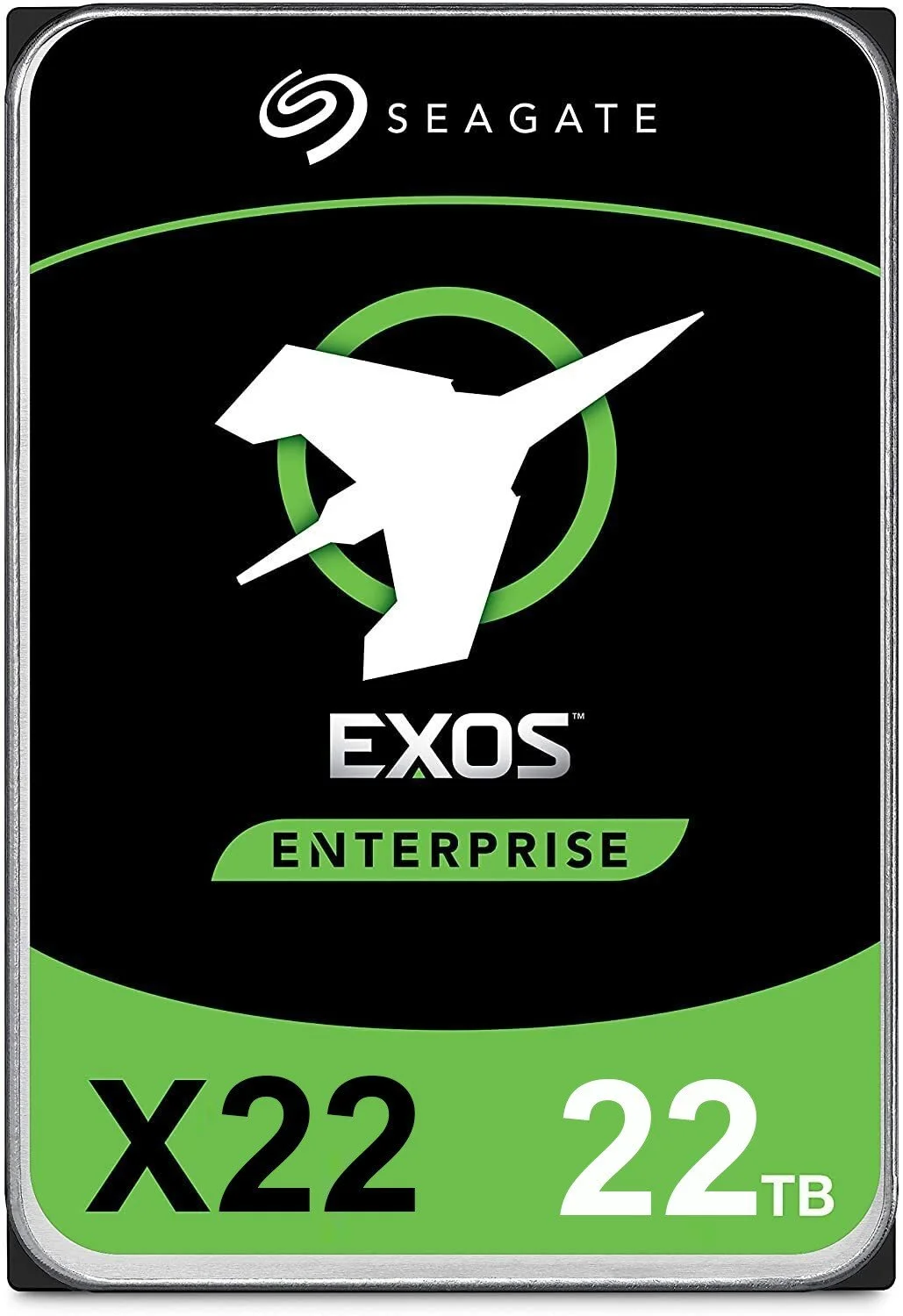

Seagate Exos X22 512E/4KN INTERNAL 3.5' SATA DRIVE, 22TB, 6GB/S, 7200RPM, 5YR WTY

$1,188.00
On backorder - Contact us for lead times
Seagate Exos X22 512E/4KN INTERNAL 3.5' SATA DRIVE, 22TB, 6GB/S, 7200RPM, 5YR WTY
Market-leading 22TB HDD
Hyperscale SATA model
Specifications
Capacity 22 TB
Helium Sealed-Drive Design Yes
Conventional Magnetic Recording (CMR) Yes
SuperParity Yes
Low Halogen Yes
PowerChoice™ Technology Yes
PowerBalance Technology Yes
Hot-Plug Support Yes
Cache, Multi-segmented (MB) 512
Organic Solderability Preservative Yes
RSA 3072 Firmware Verification (SD&D) Yes
Mean Time Between Failures (MTBF, hours) 2,500,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year 8,760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector)
4096
Warranty, Limited (years) 5
Spindle Speed (RPM) 7,200
Interface Access Speed (Gb/s ) 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s) 285/272
Random Read/Write 4K QD16 WCD (IOPS) 168/550
Average Latency (ms) 4.16ms
Interface Ports Single
Rotation Vibration @ 20-1500 Hz (rad/sec²) 12.5
Height (in/mm, max) 1.028 in/26.11 mm
Width (in/mm, max) 4.01 in/101.85 mm
Depth (in/mm, max) 5.787 in/147 mm
Weight (lb/g) 680 g/1.37 lb
